How to Install Solar Piles in Hard Rocky Ground

In large-scale solar farm construction, project sites often face complex ground conditions, especially rock layers or hard soil. In such cases, driving steel piles directly into the ground can be challenging: piles may refuse to penetrate, construction efficiency drops, and equipment may be damaged.

To ensure smooth construction, many projects use DTH (Down-the-Hole) pre-drilling to prepare a stable foundation for solar pile installation.

This article explains:

• Why DTH is needed in rocky areas

• What DTH is

• How DTH pre-drilling is done

• Benefits of using DTH

Why Rocky Areas Require DTH

Direct pile driving in rocky or dense soil can face several challenges:

• Piles cannot penetrate: rock layers provide high resistance, making traditional pile driving difficult.

• Low construction efficiency: repeated attempts waste time and increase costs.

• High equipment wear: continuous impacts on hard rock can damage the pile driver.

• Unstable pile foundation: piles may bend or tilt, affecting the accuracy of PV mounting structures.

Therefore, in rocky ground, pre-drilling with DTH is a standard approach to ensure stable pile installation.

What is DTH?

DTH (Down-the-Hole) drilling is a technique in which the hammer is located directly at the bottom of the hole.

Key features:

• Direct energy transfer to the drill bit, providing high drilling efficiency

• Ideal for rock and hard soil layers

• Can be integrated with solar pile drivers for combined drilling and pile installation

A typical DTH system includes:

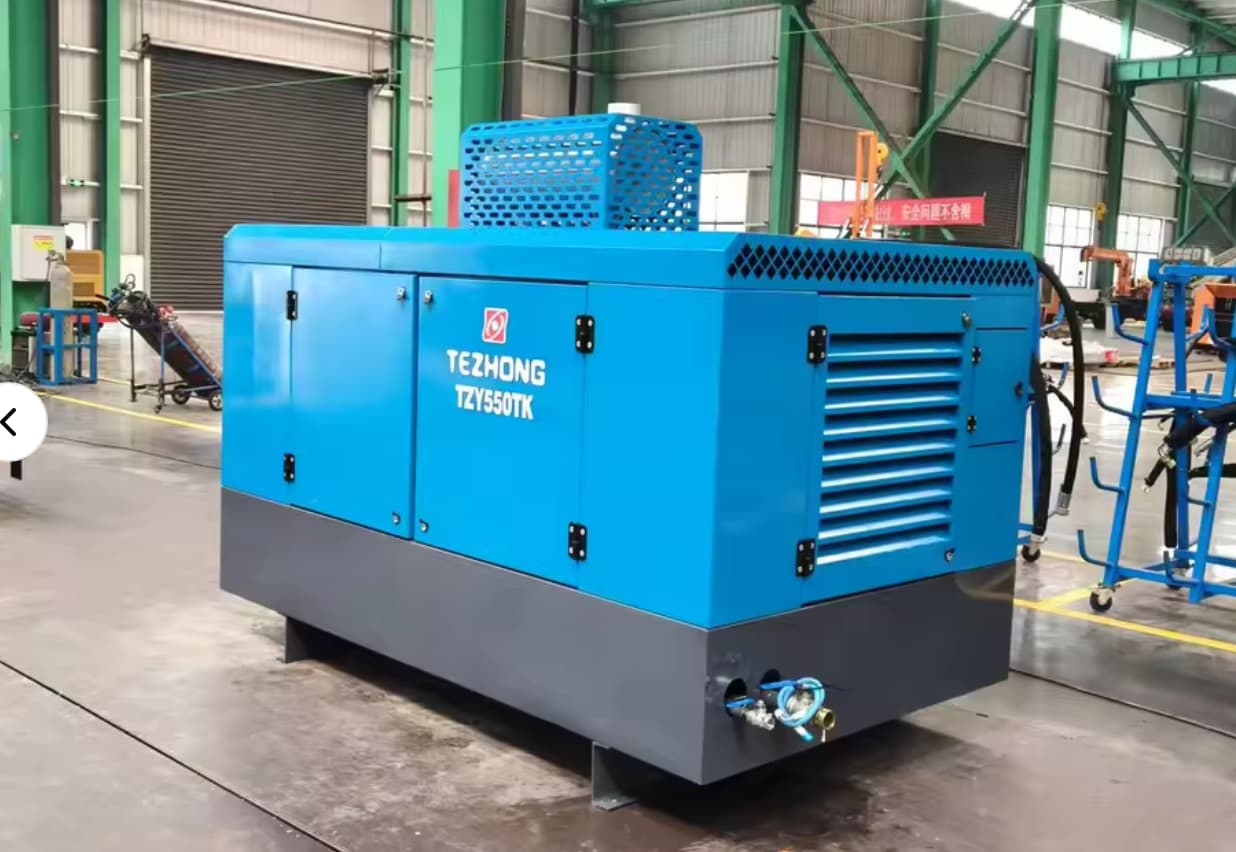

• High-pressure air compressor

• Down-the-Hole hammer (DTH Hammer)

• Drill rods

• Drill bit

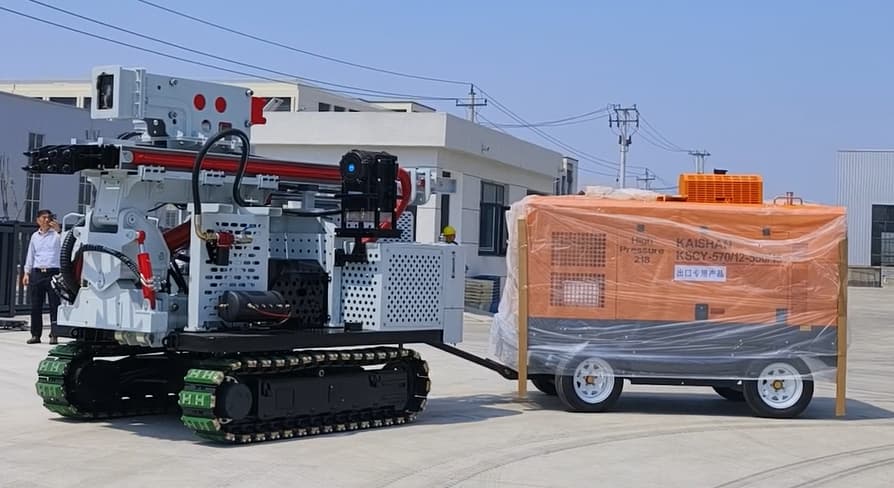

• Supporting structure, often mounted on a solar pile driver or drilling rig

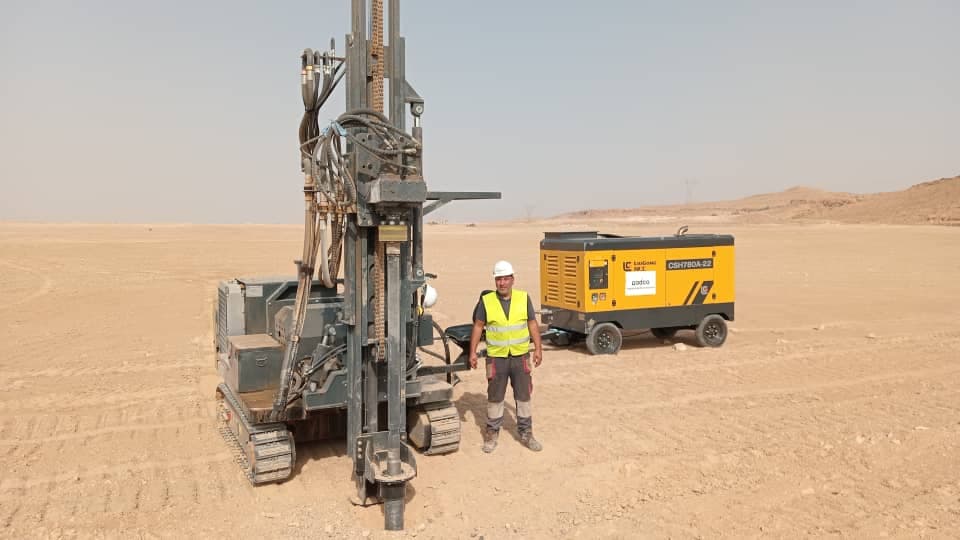

How DTH Pre-Drilling Works

The workflow for DTH pre-drilling in solar projects typically includes:

1. Site layout: Mark the location of each pile according to the solar farm design, ensuring proper alignment.

2. Start the air system: High-pressure air drives the piston in the DTH hammer and blows out rock cuttings.

3. Drilling with impact: The DTH hammer rapidly strikes the drill bit while the drill rods rotate, breaking the rock efficiently (“impact + rotation”).

4. Remove debris: Compressed air keeps the hole clear of cuttings and prevents blockages.

5. Install solar piles: After drilling, steel piles are placed into the hole using vibration or hydraulic pressing, with optional grouting for extra stability.

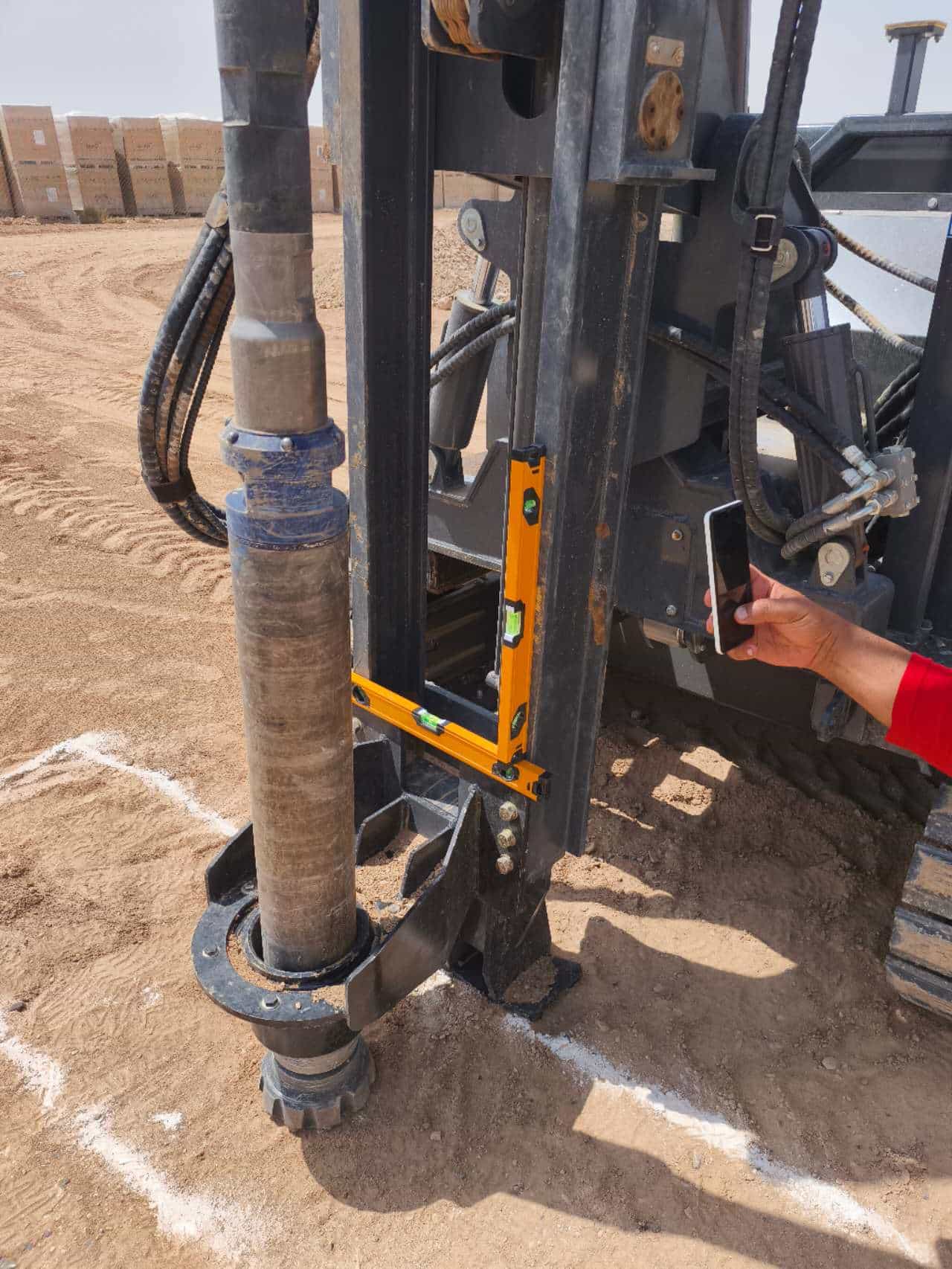

6. Check pile alignment and depth: Ensure verticality and design depth meet project standards.



Benefits of Using DTH

Using DTH pre-drilling in rocky areas offers significant advantages:

• Higher efficiency: Drill through hard rock quickly.

• Reduced equipment wear: Avoids direct impact on piles and machines.

• Improved pile accuracy: Allows precise control of depth and verticality.

• Adaptability to complex ground: Effective in rock, dense soil, or mixed layers.

Advantages of TZ Machinery Solar Pile Drivers

When combined with DTH pre-drilling, TZ Machinery solar pile drivers provide an ideal solution:

• Seamless integration with DTH drilling for combined drilling and pile installation

• Accurate control of pile verticality and depth, ensuring PV mounting precision

• High efficiency and stability, suitable for various rock and hard soil conditions

• Multi-functional design, supporting drilling, pile driving, and maintenance

By combining DTH technology with TZ Machinery equipment, construction teams can install solar piles quickly, accurately, and efficiently, even in the toughest rocky terrain, ensuring reliable foundations for large-scale solar farms.
